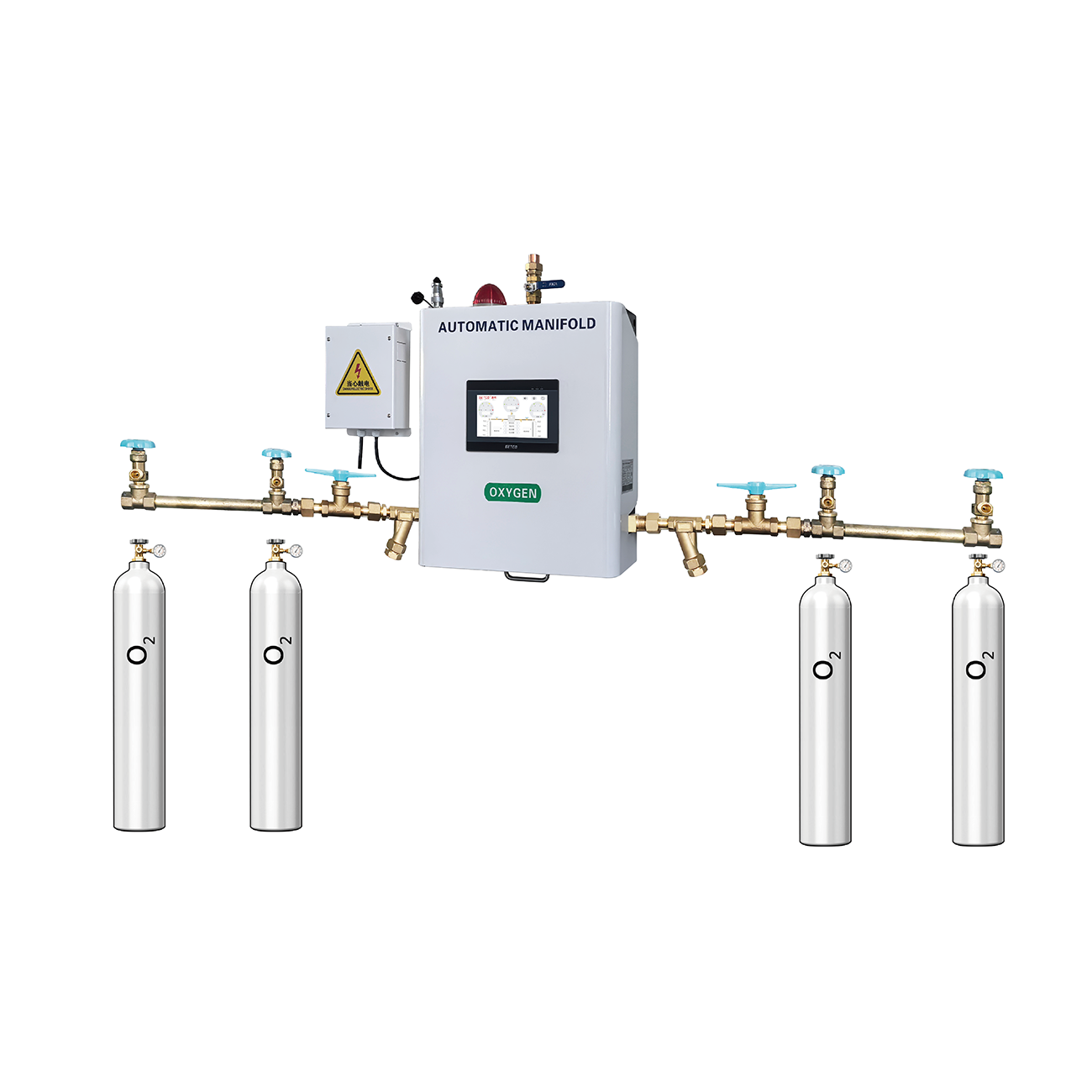

Medical Gas Manifold

Designed for automatic switching between two gas sources.
Automatic switching can be achieved without operator debugging.
Can continue normal work when the electrical system is powered off.
Complies with NFPA 99 of the United States, HTM 02-01 and 7396 of the UK.
Separation of strong and weak electricity, with 220V inside the power supply box and 24V weak electricity for the manifold.
Pilot-controlled switching of gas circuits helps ensure stable pressure.
Two-stage pressure-stabilizing regulators provide one regulator in use and one backup.
Temperature monitoring helps prevent frosting, overheating and gas leakage.
PLC control provides precise pressure and stable control, 485 remote monitoring output and audible/visual alarm testing.
Optional automatic switching and linkage between the main liquid oxygen gas circuit and the manifold.

Technical Reference

Gas Service	Inlet Pressure (MPa)	Output Flow (m3/h)	Output Pressure (MPa)	Outlet Connection	Inlet Connection	Power
Oxygen	20	100 (3530 SCFH)	0.55	3/4" union joint (thread: RC3/4)	Brass pipe, conforming to CGA standard or Chinese national standard M33x2.0.	220V, 50HZ
Medical Air	20	100 (3530 SCFH)	0.8	3/4" union joint (thread: RC3/4)	Metal hose, conforming to CGA standard or Chinese national standard M33x2.0.	220V, 50HZ
Nitrous Oxide	20	50 (1765 SCFH)	0.5	3/4" union joint (thread: RC3/4)	Metal hose, conforming to CGA standard or Chinese national standard M33x2.0.	220V, 50HZ
Carbon Dioxide	20	30 (1060 SCFH)	0.8	3/4" union joint (thread: RC3/4)	Metal hose, conforming to CGA standard or Chinese national standard M33x2.0.	220V, 50HZ
Inert Gas	20	100 (3530 SCFH)	0.8	3/4" union joint (thread: RC3/4)	Metal hose, conforming to CGA standard or Chinese national standard M33x2.0.	220V, 50HZ

Installation Dimension (mm)

Applicable Gases	W	H1	H2
O2, Air, N2O, Inert	540	350	600
CO2	650	350	600

Ordering Guide (GAM-)

Code Section	Meaning
Mounting type	Fully automatic switching digital display
Pressure	L: 55PSI / 0.5MPa; M: 80PSI / 0.55MPa; H: 185PSI / 1MPa
Gas	O2: Oxygen; Air: Air; N2O: Nitrous Oxide; CO2: Carbon Dioxide; IN: Inert Gas
Standard	U: US standard; E: EU standard; G: Guobiao; UE: Canadian standard
Bottle arrangement	Left bottle number x right bottle number; optional switching device
Type	S: Standard linear type; L: L-type; U: U-type; D: Bilateral linear type; X: Crossed special type
Caliber	1: 5" (127mm); 2: 10" (254mm); 3: 13" (330mm); 4: 18" (457mm)
