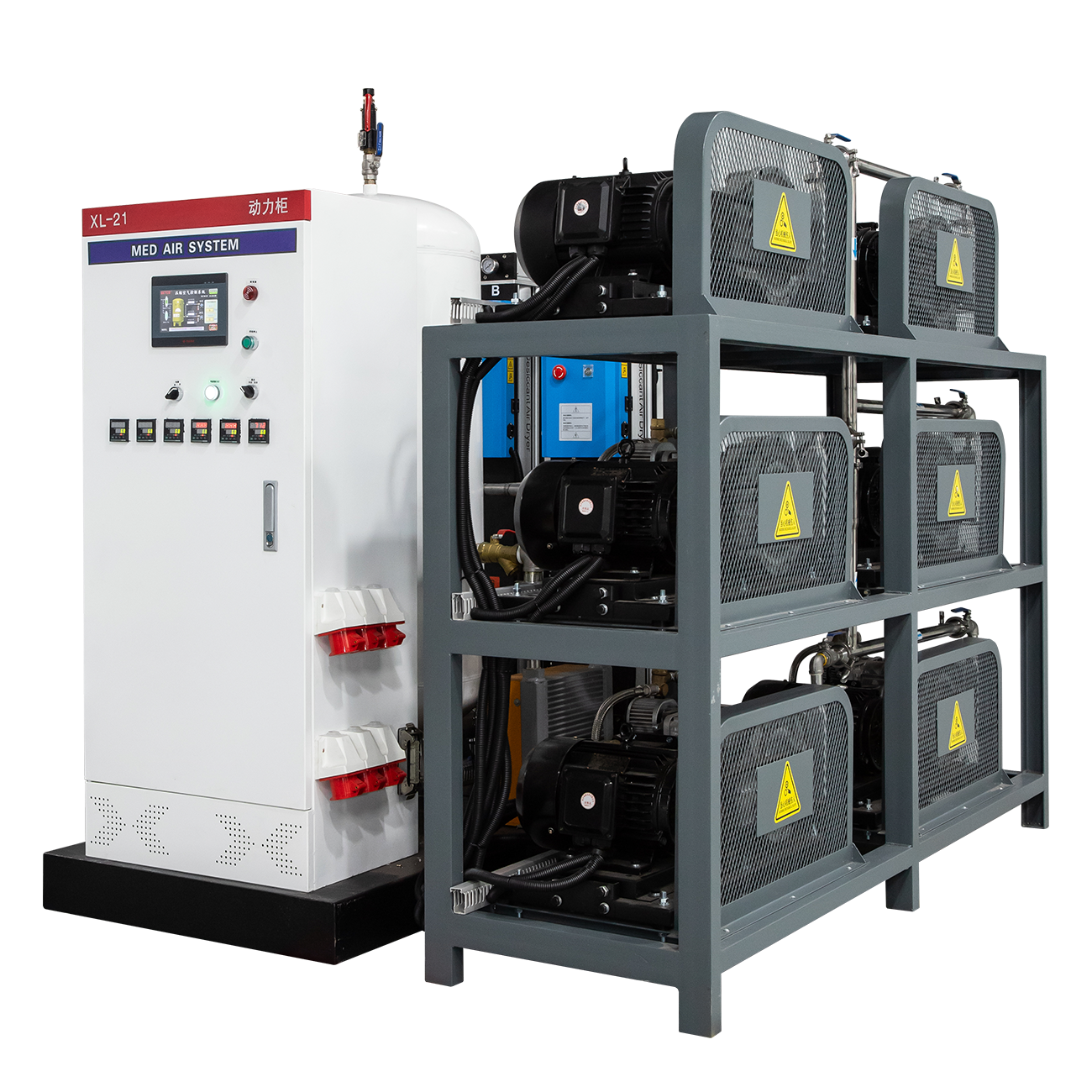

Medical Air Compressor Unit

Oil-free scroll pumps are selected, with an integrated skid-mounted unit for flexible connection and easy on-site installation.
Multiple units work in circular operation with one pump as backup, helping ensure uninterrupted gas supply.
Three-stage filtration, automatic blowdown and adsorption drying provide oil-free, clean and dry output gas.
Pressure dew point alarm and carbon monoxide concentration alarm support local monitoring and remote building-system transmission.
Automatic pressure-sensor control, reverse rotation protection and optional automatic startup after power restoration.
Remote communication protocol interface is available.

Technical Parameters - Oil-free Scroll (0.86 MPa)

Model	Single-unit Flow Rate (m3/min)	Single-unit Power (kW)	Adsorption Dryer (m3/min)	Steam-water Separator (m3/min)	Oil Removal Filter (1um, 0.1mg/m3)	Dust Removal Filter (3um, m3/min)	High-precision Filter (0.01um, 0.01mg/m3)
GA3.7II	0.41	3.7	1.6	1.3	0.57	0.57	0.57
GA5.5II	0.62	5.5	1.6	1.3	1.3	1.3	1.3
GA7.5II	0.82	7.5	1.6	1.3	1.3	1.3	1.3
GA11.0II	1.24	11	1.6	2.8	2	2	2
GA15.0II	1.62	15	2.4	2.8	2	2	2
GA16.5II	1.86	16.5	2.4	2.8	2	2	2
GA18.5II	2.03	18.5	2.4	2.8	2.8	2.8	2.8
GA22.0II	2.48	22	3.8	2.8	2.8	2.8	2.8

Technical Parameters - Micro-oil Screw (0.8 MPa)

Model	Single-unit Flow Rate (m3/min)	Single-unit Power (kW)	Adsorption Dryer (m3/min)	Steam-water Separator (m3/min)	Oil Removal Filter (1um, 0.1mg/m3)	Dust Removal Filter (3um, m3/min)	High-precision Filter (0.01um, 0.01mg/m3)
GAE5.5II	0.75	5.5	1.6	1.3	1.3	1.3	1.3
GAE7.5II	1.05	7.5	1.6	1.3	1.3	1.3	1.3
GAE11.0II	1.6	11	1.6	2	2	2	2
GAE15.0II	2.3	15	2.4	2.8	2.8	2.8	2.8
GA16.5III	2.9	16.5	2.4	2.8	2	2	2
GA18.5III	3.5	18.5	2.4	2.8	2.8	2.8	2.8
GA22.0III	5.3	22	3.8	2.8	2.8	2.8	2.8

The same applies to multiple stages.
