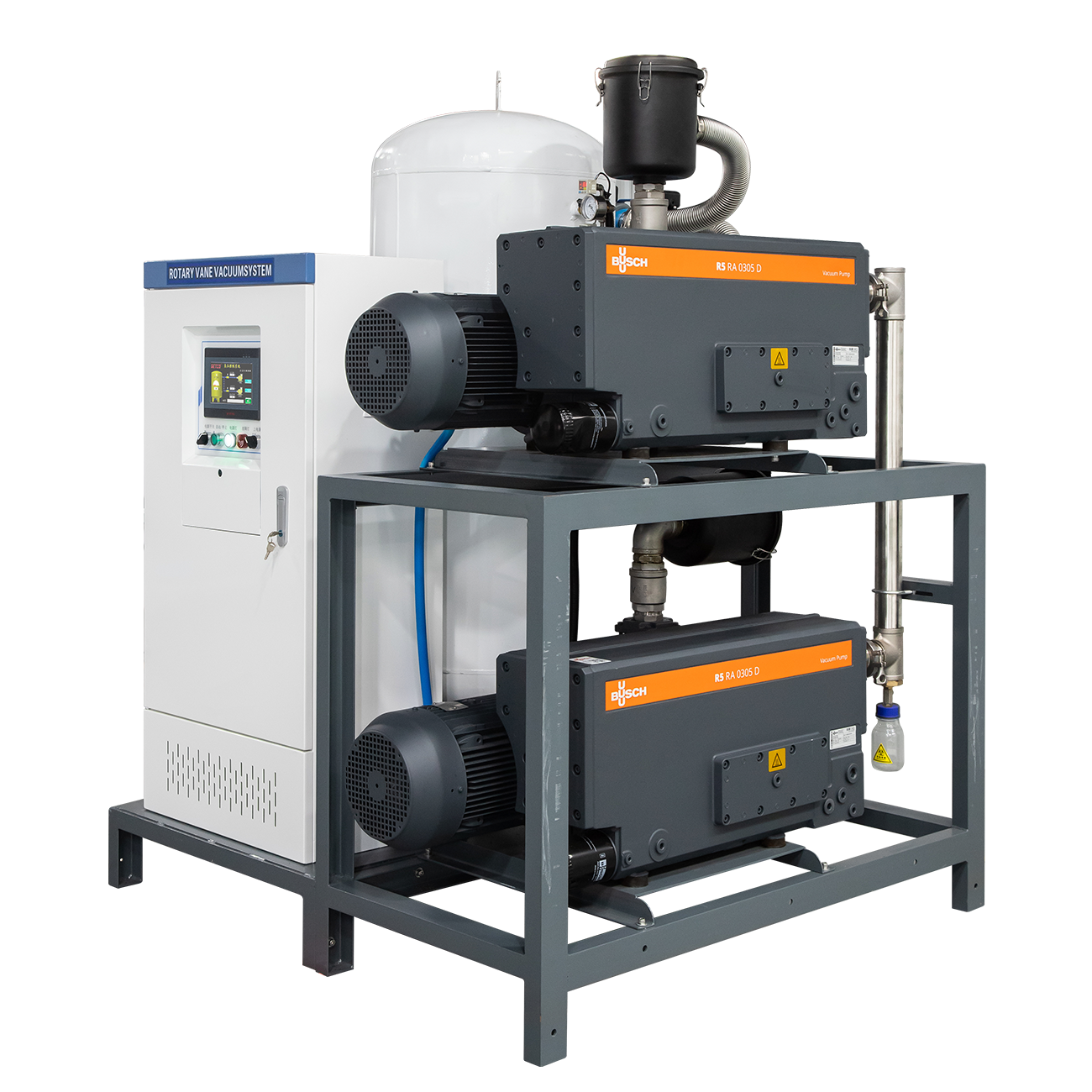

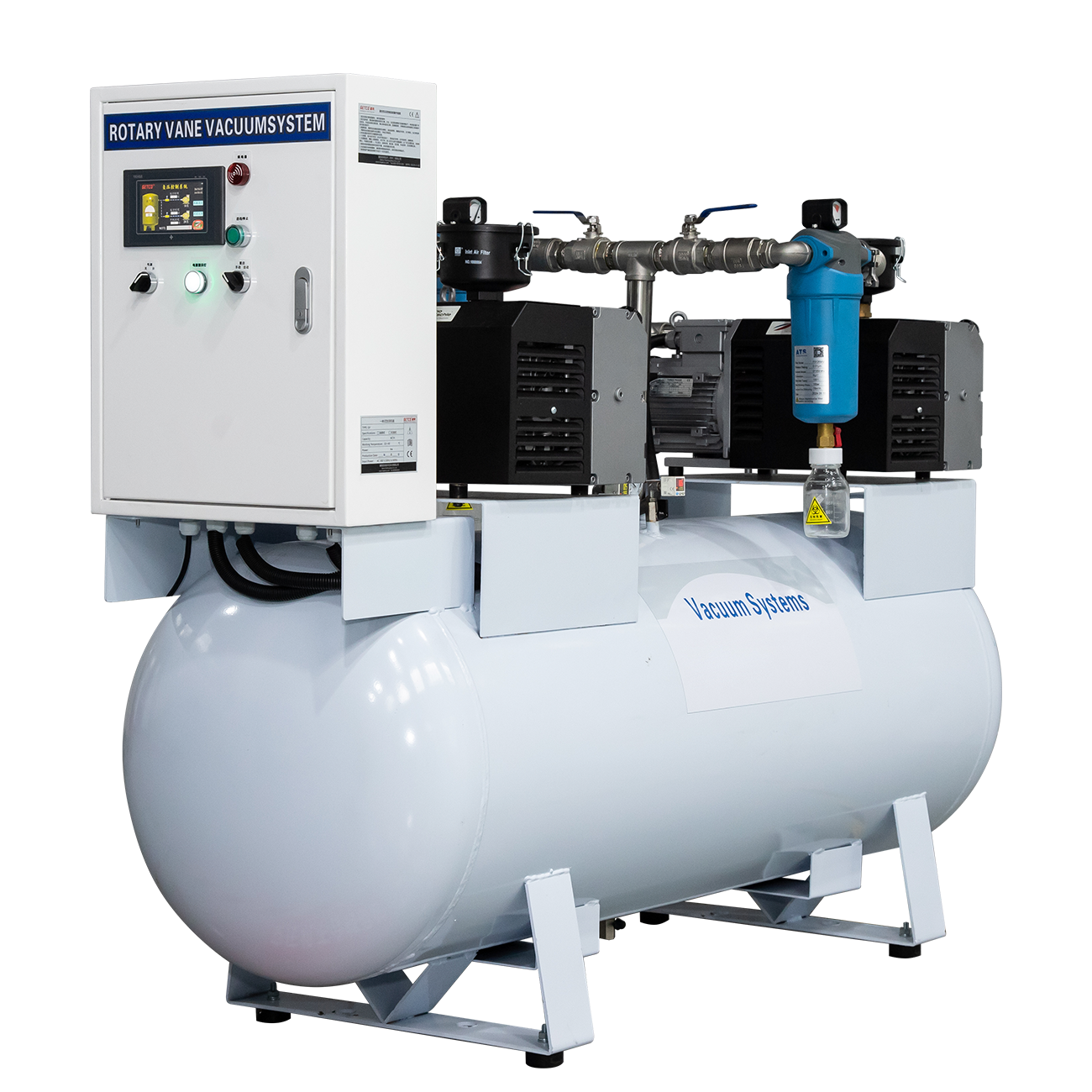

Medical Vacuum Negative Pressure Units

Product Features

Integrated skid-mounted units with multiple functions, flexible connections and easy on-site installation.
Equipped with bacterial filters and tail gas sterilizers; according to BS3928, it can minimize the possibility of microbial contamination.
PLC and touch screen control can display settings, debugging and various operating information.
Reverse protection and optional automatic startup after power failure recovery are available.
Remote communication protocol interfaces are provided.

Technical Parameters - Oil Ring Type

Model	Single-unit Flow Rate (m3/h)	Single-unit Power (kW)	System Flow Rate (m3/h)	Overall Dimensions (LWH) mm	Weight (kg)
Two-stage
GV1.5II	40	1.5	80	18208501300	260
GV2.2II	63	2.2	126	18208501300	295
GV3.0II	100	3	200	18208501300	350
GV4.0II	160	4	320	160012001850	460
GV5.5II	200	5.5	400	160013501850	505
GV7.5II	300	7.5	600	160013501850	580
Three-stage
GV1.5III	40	1.5	120	240012001850	320
GV2.2III	63	2.2	189	240012001850	450
GV3.0III	100	3.7	300	240013501850	520
GV4.0III	160	4	480	240013501850	600
GV5.5III	200	5.5	600	240013501850	690
GV7.5III	300	7.5	900	240013501850	720

Technical Parameters - Oil-free Type

Model	Single-unit Flow Rate (m3/h)	Single-unit Power (kW)	System Flow Rate (m3/h)	Overall Dimensions (LWH) mm	Weight (kg)
Two-stage
GVN1.5II	62	1.5	124	18208501300	270
GVN2.2II	100	2.2	200	18208501300	310
GVN2.7II	120	2.7	240	18208501300	340
GVN3.0II	150	3.0	300	18208501300	360
GVN4.0II	215	4.0	430	160012001850	450
GVN5.5II	300	5.0	600	160013501850	490
GVN9.0II	400	9.0	800	270014001850	870
GVN11.0II	500	11.0	1000	270014001850	1050
Three-stage
GVN1.5III	60	1.5	180	240012001850	330
GVN2.2III	100	2.2	300	240012001850	390
GVN2.7III	120	2.7	360	240012001850	440
GVN3.0III	150	3.0	450	240012001850	460
GVN4.0III	211	4.0	633	240013501850	530
GVN5.5III	300	5.5	900	240013501850	610
GVN9.0III	400	9.0	1200	330014001850	1150
GVN11.0III	500	11.0	1500	330014001850	1350

Multistage and so on. For more technical parameters, please refer to "GETCO Unit Selection and Flow Calculation Specifications - GB" or consult local dealers.
